Profile Stretch Bending & Forming Press Equipment For Sale

Stretch Forming Machine

Expert in Stretch Bending Machines. High-quality Stretch Forming Machine manufacturers in China. Stretching Force is Available in 160T, 128T, 84T, 64T, 40T, 25T, and 10T.

profile stretch press

What are the advantages of PBF stretch forming machines?

Minimizes internal stress: Stress is reduced due to the normalized grain structure of the metal after heat treatment and forming process, greatly reducing spring-back. High volume output: Stretch forming is a rapid process and well suited to higher volume output. Large parts: larger parts can be formed with Senior Aerospace Thermal Engineering’s open access cold stretch presses. Lower cost: Stretch forming is lower cost than cold draw forming due to simpler forming tools being used.

High bending quality

  • After spraying, electrophoresis, electroplating, polishing, wire drawing, etc., the material can bend directly without damaging the surface of the material.
  • Profiles with cavities and complex cross-sections can be formed at one time. When the relative bending radius allows, the inner wall will not be wrinkled and the section will not be distorted.
  • Bending can effectively eliminate the residual stress inside the material, and the product has good dimensional stability.
  • Due to the cold work hardening of the metal material, the comprehensive mechanical properties of the material can be improved after the material is stretched and bent.

Strong bending ability

  • Maximum bending arc length: 12 meters
  • The maximum length of one molding can reach 12 meters, which can improve installation efficiency, reduce installation costs, save materials and improve project quality for projects that require a longer arc length.
  • Maximum cold-formed section: 500mmx350mm
  • Bending Radius: Unlimited as permitted by material mechanical properties (elongation)

Standard model parameters

Standard longitudinal profile stretch forming press machines: The table hereunder is an indication to give you an overview of the machines we already installed. Each machine can be customized according to your requirements.

Model PBF-10PBF-40PBF-40+PBF-60PBF-80PBF-100PBF-100+PBF-160PBF-160+PBF-200PBF-300
Max. Stretching. Force (ton)1040406484108108168168200300
Max. Part. Length(mm)300040006000650065007000900012000120001200012000
Min. Part. Length(mm)400800120018001800250025004500450045004500
Max. Finished. Angle(deg)180180180180180180180180180180180
Min. Forming. Radius(mm)2502505005007507501500150015001500
Max. Section(mm)80×90140×140140×140200×180200×200250×300250×300300×350300×350350×400350×500

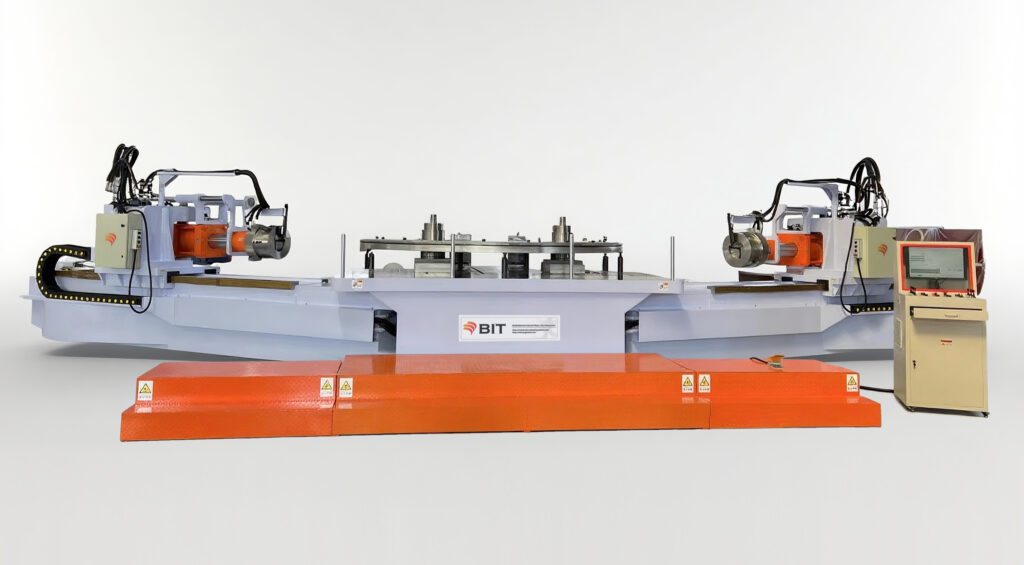

BIT has two forms of stretch forming press: PBF Stretch Forming Machine and PBF-T Stretch Forming Machine
stretch forming machine

The Stretch Bending Machine (also named Strech Forming Machine, and Profile Stretch Press) can be divided into rotary type Stretch Bending Machine and double arm type Stretch Bending Machine, and various special stretch bending machines, such as a special stretch forming machine for shower room, special forming bending machine for train roof beam, and special stretch forming machine for the elevator.

The Stretch Bending Machine adopts full hydraulic control and can cold-form (cold bending) various steel pipes, square tubes, H-beams, I-beams, channel steels, angle irons, flat irons, and aluminum profiles with a section below 500mm.

profile stretch press

The variety of materials with properties suitable for this forming process include stainless steel, clad metals, nickel, aluminum, brass and titanium alloys, and other heat-resistant and refractory metals. In some cases, parts formed using these materials are difficult or impossible to form by other methods.

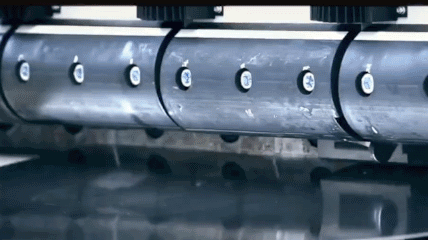

The aerospace industry initially invented the stretch forming presses used to form aluminum aircraft parts to reduce weight to improve fuel efficiency. Today they are used worldwide across industries such as automotive for body and frame components, architecture to create curved structural elements, and the rail car industry for structure frame components.

profile stretch press

Application of profile stretch press

The variety of materials with properties suitable for this forming process include stainless steel, clad metals, nickel, aluminum, brass and titanium alloys, and other heat-resistant and refractory metals. In some cases, parts formed using these materials are difficult or impossible to form by other methods.

The aerospace industry initially invented the stretch forming presses used to form aluminum aircraft parts to reduce weight to improve fuel efficiency. Today they are used worldwide across industries such as automotive for body and frame components, architecture to create curved structural elements, and the rail car industry for structure frame components.
