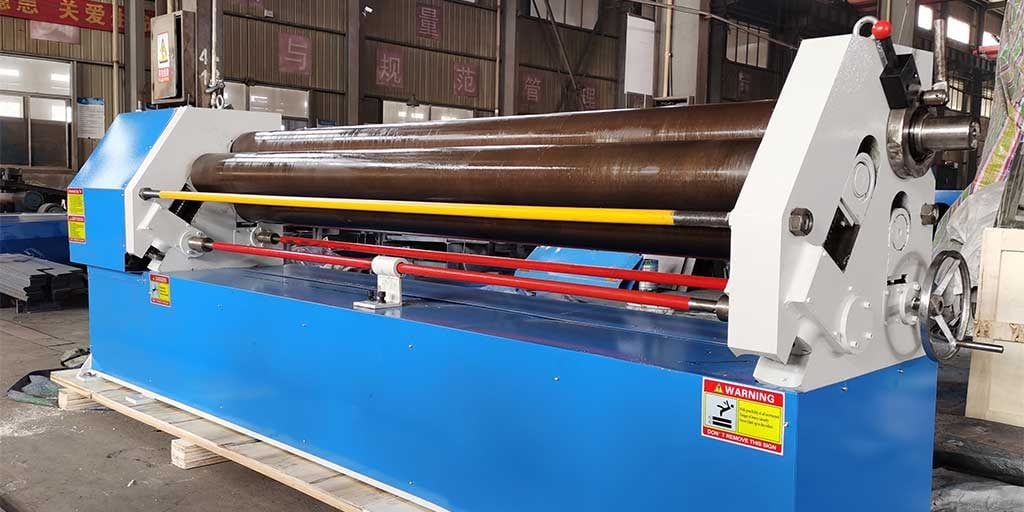

PRA 3 ROLL Initial Pinch Plate Rolling Machine

Suitable for rolling thin, medium-thick aluminum plates or stainless steel plates. Any cylinders in full circle or in varying radiuses can be done easily.

3-Roll Plate Bending Machine

Initial Pinch Plate Rolls PRA

PRA 3 roll initial pinch plate rolls generally are for light-capacity applications and are electromechanical or hydraulic, they ensure you get excellent results with a single operator thanks to its ease of use feature, with a familiar asymmetrical construction, providing a simple and inexpensive approach for thin sheet metal bends.

The PRA 3-roll plate bending machine is the best solution for bending plates with thicknesses between 1 mm and 9 mm and widths from 1000 mm to 3000 mm.

Read More: Plate Rolling Machine, Sheet Metal, Steel Plate Bending Roll

Initial Pinch Plate Rolls
Initial Pinch Plate Rolls

Work principle of PRA Plate Rolling Machine

The PBA Initial Pinch Plate Rolls work by pinching the metal plate between two vertically opposed rolls while the third bending roll—moves upward to contact and then bends the plate. When the rotation of the rollers is activated, the plate exits at a given radius. With the sheet cut to the developed length and the bending roll properly positioned, the part is rolled into a cylindrical shape that can then be welded at the seam to produce a closed cylinder.

Read More: Best Buyer’s Guide for 3 Roll Bending Machine

Initial Pinch Plate Roller
Initial Pinch Plate Roller

Features of PRA Plate Rolling Machine

  • Simple initial pinch
  • Flexible manual drop end
  • High-efficiency machine processing
  • Specialize in small diameter cylinder bendHigh quality solid rolls are applied to bend stainless steel
  • The easily-operated hand wheel is used to help lateral roll

Read More: Best Buyer’s Guide for 3 Roll Plate Bending Machine

PRA Steel Plate Rolling Machine
PRA Steel Plate Rolling Machine

Safety Standard of PRA Plate Rolling Machine

  • Safety standard(2006/42/EC)
  • Electric cabinet with opening door cutting off power function
  • China-made pedal switch (safety grade 4)
  • Metal safety guards conforms to CE standards
  • Safety relay monitors the pedal switch and safety guard

PRA Series 3 Roll Plate Bending Machine Parameters

ModelMax. Thickness of Plate
(mm)
Pre-bending Thickness
(mm)
Max. Width of Plate
(mm)
Plate Yeild Limit
(Mpa)
Top Roller Diameter
(mm)
Bottom Roller Dia.
(mm)
Side Roller Dia.
(mm)
Main Motor
(Kw)
Dimension
(L*W*H)
Weight
(T)
PRA-2102210002451101101102.22000*700*11001000
PRA-2152215002451201201202.22500*700*11001200
PRA-2202220002451301301302.22950*700*10001450
PRA-3103310002451201201202.22000*700*11501050
PRA-3153315002451301301302.22500*670*10501150
PRA-4104410002451301301302.22100*800*11001300
PRA-41544150024513513513532600*800*11501600
PRA-42044200024515015015043150*700*11002000
PRA-610
¼” Plate Roller
66100024514014014031950*700*10001500
PRA-615
¼” Plate Roller
66150024515015015042660*800*12502200
PRA-620
¼” Plate Roller
6620002451701701705.53150*800*13002600
