MSH-260 Semi-hydraulic Angle Roller
MSH-260 Semi-hydraulic angle roller is not a BIT PBH series product，it is half hydraulic type section bending machine (Half hydraulic tube bending machine).
MSH-260 Semi-hydraulic angle roller is not a BIT PBH series product，it is half hydraulic type section bending machine (Half hydraulic tube bending machine).
It is not a product of BIT, but a product of a BIT-friendly company. We can sell this small section bending machine on your behalf.
The MSH-260 section bending machine is also not produced by BIT, but it is supervised by BIT, and the quality can be trusted.
Semi-hydraulic profile bending machine is a kind of general equipment specially used for profile bending and forming. It can adapt to the rolling of some types of angle, flat bar, round bar, channel, square pipe, round pipe and other profiles. It is widely used in boilers, chemicals, and mining , Construction, shipbuilding and other machinery industries.
The electrical equipment used in the equipment is made of high-quality Chinese famous brand products, and the electrical components are strictly tested before installation to ensure reliable operation.
The equipment runs smoothly, with flexible control, no jamming, oil leakage and abnormal noise. The paint surface is smooth and bright, the thickness of the paint mold is uniform, and there are no defects such as flow marks and missing spray.
Two bottom rollers fixed, top roller lifting by hydraulic oil tank. Three drive rolls, the power come from hydraulic motor. The side guide rollers ensure the high quality bending of asymmetric profiles.
specifications
 |
Max.Section(mm): | 75×16 |
 |
Max.Section(mm): | 150×25 |
| Min.bending DIA(mm): | Φ800 | Min.bending DIA(mm): | Φ1500 | ||
 |
Max.Section(mm): | 50×50 |
 |
Max.Section(mm): | Φ76×4.5 |
| Min.bending DIA(mm): | Φ500 | Min.bending DIA(mm): | Φ700 | ||
 |
Max.Section(mm): | 60x60x4 |
 |
Max.Section(mm): | 70x70x8 |
| Min.bending DIA(mm): | Φ1000 | Min.bending DIA(mm): | Φ1000 | ||
 |
Max.Section(mm): | 80x80x8 |
 |
Max.Section(mm): | 120 |
| Min.bending DIA(mm): | Φ2500 | Min.bending DIA(mm): | Φ600 | ||
 |
Max.Section(mm): | 120 |
 |
Max.Section(mm): | 80x80x9 |
| Min.bending DIA(mm): | Φ600 | Min.bending DIA(mm): | Φ700 | ||
 |
Max.Section(mm): |  |
Max.Section(mm): | ||
| Min.bending DIA(mm): | Min.bending DIA(mm) | ||||
| Sectional modulus cm3: | 10-20 | Bending speed: | 6 Meters/Minute | ||
| Material yield limit(Mpa): | 250 | Motor power (KW): | 5.5 | ||

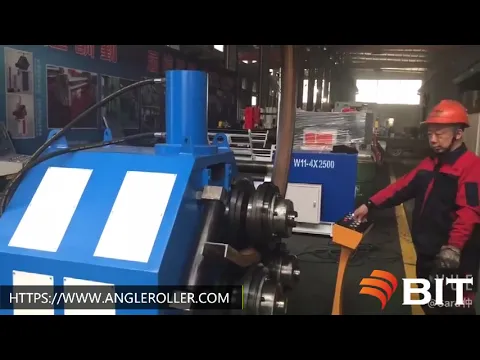

Semi-hydraulic profile bending machine photos
