Aluminum or Copper Mirror Frame Roll Bending Machine
PBA-100 Aluminum Profile Bending Machine
The PBA-100 aluminum profile bending machine is mainly used for the arc bending of aluminum alloy profiles. It can process circles, multi-radius bending, rounded polygons, and other custom irregular shapes. The CNC software system is used to control the servo motor to perform arc bending operations. Bending and forming according to the drawn graphics, which has the advantages of convenient operation and high forming degree, and is widely used in metal forming fields such as picture frames, mirror frames, decorations, ceilings, lamps, advertisements, and furniture.
PBA-100 Profile Bending Machine is used to bend aluminum alloy sections, it can process many types of shapes, for example, Circle, ellipses, runway circles, polygons, and irregular figures, a computer controls the machine, humanized software has a more practical function for the customer. According to different shapes, the machine will process follow the body, machine software is easy to learn and operate, it is convenient, and it is used to process frames, mirror frames, Decorative pictures, Ceiling, lamps and lanterns, Advertising, Furniture, and metal forming industry.
Introduction of PBA-100 Profile Bending Machine
Automatic Aluminum Profile Bending Machine including material support frame /feed structure/bending structure/machine shell.

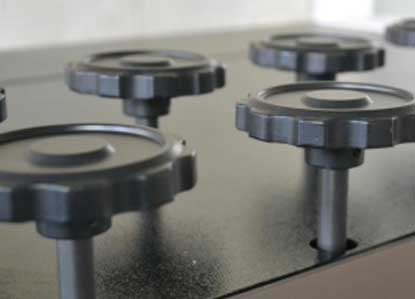

- Material support frame and side baffle, this structure will help us to feed material in the PBA-100 aluminum bending machine better, including three pcs support axis and two sets of side baffle bearings, we can adjust the position of side baffle bearing following different material widths.

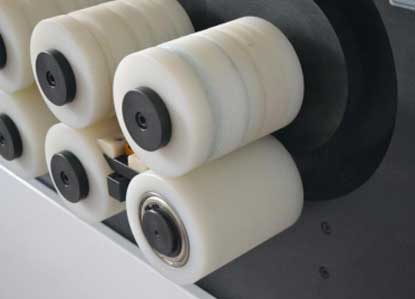

- Feed structure is used to control the feeding precision following the size of the shape, including four sets of feed axis, drive parts, and pressure adjustment structures. Four groups of feed axis, all of which are connected to the servo motor by a toothed gear, depends on different thickness material, we can adjust the pressure by hand wheel pressure adjustment structure. there are many kinds of material, so we need to get the material sample and change the groove size following the cross-section of the material.
- The bending structure will bend aluminum alloy sections following different curve shapes. The Servo motor provides enough power to bend the material, when the PBA-100 aluminum bending machine is working, the servo motor will turn to a suitable angle, then the engine will start to bend the curve of shape.
- The outside metal shell will protect the main body of the PBA-100 aluminum bending machine. The machine is made of a square tube welding framework with a pulley, the machine can be moved and located, the main body of the machine is made of 20mm carbon steel, the CNC machining center processes it, it will make sure that the drive part is good enough about precision and rigidity, it makes machine get high-efficiency stable performance and long service life.
Technical Specification
| Feed Speed | 150mm/s |
| Feed Accuracy | ±0.2mm |
| Bend Axis Torque | 200N·M |
| Die Axis Length | 120mm |
| Minimum Bend radius | 50mm |
| Control System | Autodrive Automatic Mirror Frame Bending Machine System |
| Machine Size | L1302mm*W780mm*H1650mm |
| Power | 1.5KW |
| Voltage | 220V AC |
| Weight | 450Kg |
| Shape | Circle, ellipse, runway circle, polygon, and irregular figure |
| Material | Aluminum profile, Stainless steel |
| Industry Application | Frame, mirror frame, Decorative picture, Ceiling, lamps and lanterns, Advertising, Furniture, and metal forming industry |
Features
Feeding Structure
Special design for the material support structure, and adjustment material limit structure, it will make sure that material is moved well in the PRA-100 profile bending machine, with no skewing.

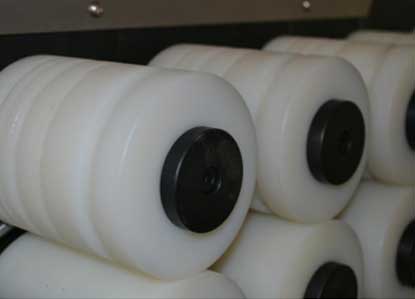

The feeding axis is made of four sets of nylon, Gear drivers roll a continuous feeding structure, at a fast speed, for example, if we process a 400mm circle, it just spends 15 seconds.
The Servo motor provides enough power to bend the material when the PBA-100 aluminum bending machine is working, the servo motor will turn to a suitable angle, then the profile bending machine will start to bend the curve of shape.
Bending Structure
The servo motor provides enough power to bend the material when the PBA-100 aluminum bending machine is working, the servo motor will turn to a suitable angle, then the PBA-100 profile bending machine will start to bend the curve of shape.
Material Detector Switch

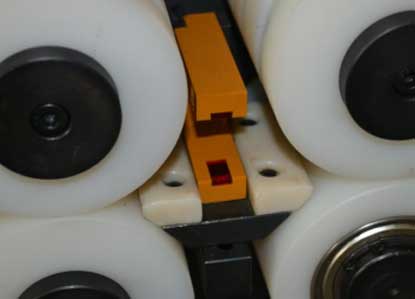

Special design for material detector switch, when the material is not enough longer, the software will remind you to add new material.
Control System

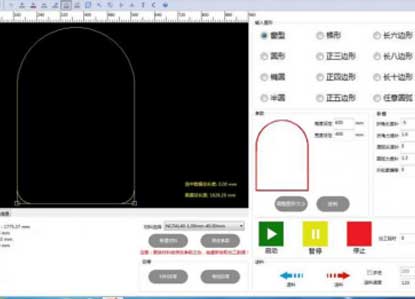

More humanize control software, more easy to operate, one PBA-100 profile bender will help you to build the assembly line, higher productivity, easy to change the data when you use different materials, and no need to test again
