Method for Fabricating 90-Degree Bend Elbows for Cable Tray

The method for producing bridge bend elbows is as follows:

Roll Bending Cable Tray【Curled Cable Tray】
Method for Fabricating 90-Degree Bend Elbows for Cable Tray
  1. Take a 90-degree cable tray bend elbow as an example, and apply the same principles for 45-degree bends accordingly.
  2. The length of the bottom side (bottom diagonal) after bending the cable tray should be equal to the width of the cable tray, but within the range of 100-400mm.
  3. Select two points at this length on the side rail of the cable tray, draw two perpendicular lines relative to the bottom side, and choose the bending direction of the bridge as the cutting opening side.
  4. Use the opening side as the bottom side, and draw perpendicular bisectors on the two lines drawn, which will form two isosceles triangles. The formula to determine the length of the base of these isosceles triangles is L = 2 × (cable trayheight × sin22.5°). As a simple example, for a 100mm high bridge, the length of the base of the isosceles triangle is 76.5mm, yielding a ratio of 100:76.5. This ratio can be applied accordingly for bridges of heights 150, 200, etc., when modifying bends. This proportion is also suitable for modifying horizontal 45° elbows.
  5. After cutting off these isosceles triangles with a tool, the bent cable tray will form two 45° bends, creating a 90° bridge bend elbow.
  6. As for modifying bend elbows with specified cable tray lengths, calculations can be made using simple mathematical knowledge learned in middle school, allowing for control of any desired length distance.
Method for Fabricating 90-Degree Bend Elbows for Cable Bridges

Following this procedure, elbows of various angles and lengths can be produced.

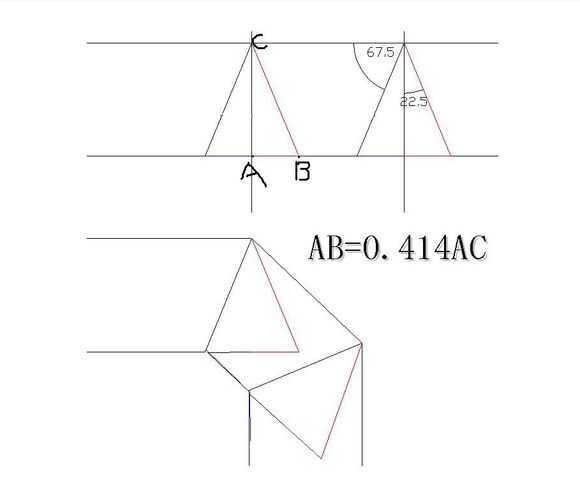

Making bent elbows for cable trays according to the formulas provided in the diagram is for reference only. The data is directly related to the width or height of the cable tray, and calculations can be made based on the formulas given in the diagram.
