Aluminium is a widely used metal known for its lightweight, corrosion resistance, and excellent thermal and electrical conductivity. Its versatility and abundance make it a popular choice for various applications, ranging from aerospace and automotive to construction and consumer goods. One question that often arises is whether aluminium can be stretched.
Understanding Aluminium’s Formability
Formability refers to a material’s ability to undergo plastic deformation without fracturing or breaking. It is a crucial property when considering metalworking processes such as bending, stretching, and deep drawing. Aluminium possesses relatively good formability, which allows it to be shaped into different forms through various forming techniques.
Aluminum’s formability is a hallmark of its versatility and utility across various industries. Formability refers to a material’s ability to undergo deformation processes, such as bending, stretching, and shaping, while retaining its integrity and properties. Aluminum excels in this regard due to its inherent characteristics, making it a favored choice for a wide array of applications.
Ductility and Elastic Modulus
Aluminum possesses exceptional ductility, enabling it to be easily stretched or bent without fracturing. This ductility stems from its atomic structure, where the atoms can shift positions without disrupting the material’s overall cohesion. Moreover, aluminum boasts a relatively low elastic modulus compared to other metals. This low modulus implies that it can undergo elastic deformation, meaning it can return to its original shape after being subjected to bending or stretch forming forces.
Cold Working and Warm Forming
One of aluminum’s remarkable attributes is its amenability to cold working, which involves shaping it at room temperature. Processes like bending, rolling, and stamping are seamlessly achievable due to aluminum’s malleability under these conditions. Additionally, aluminum can be subjected to warm forming, a technique where the material is heated slightly above room temperature before being shaped. This process reduces springback and increases malleability, resulting in even more refined formability.
Deep Drawing and Die Design
Aluminum is highly sought-after for deep drawing applications, a process where flat sheets are transformed into intricate three-dimensional shapes. Its low elastic modulus and pronounced ductility make it an ideal candidate for this technique. Effective die design is paramount during aluminum forming to mitigate the risk of cracking, tearing, and wrinkles. Rounded corners and proper radii are essential design considerations to alleviate stress concentrations and ensure successful formability.
Alloy Selection and Work Hardening
The choice of aluminum alloy plays a crucial role in determining its formability characteristics. Different alloys offer distinct formability attributes, and careful consideration of alloy selection is vital to achieving the desired outcome. Aluminum can also undergo work hardening during forming processes, a phenomenon where its strength increases while its ductility decreases. This can affect subsequent formability and may necessitate heat treatment or annealing to restore the material’s desired properties.
Lubrication and Springback
Lubricants are often used during aluminum forming to reduce friction and prevent galling between the aluminum and forming tools. This not only improves the forming process but also ensures the quality of the finished product. Moreover, like all materials, aluminum exhibits springback, a phenomenon where it partially returns to its original shape after being bent or formed. Engineers and fabricators take springback into account during die design and part geometry to achieve accurate final dimensions.
Stretch Forming Aluminium: The Process
Stretch forming aluminium involves subjecting the material to tensile forces in a specific direction, causing it to elongate or “stretch.” The stretching process is commonly employed in sheet metal forming, where the aluminium sheet is pulled over a form or die to create complex shapes and contours.
Stretch forming is a technique used to form aluminium sheets into curved or contoured shapes. The process typically involves clamping the edges of the aluminium sheet and then stretch forming it over a die using hydraulic or mechanical forces. Stretch forming allows the aluminium to take on the shape of the die while maintaining its structural integrity.
Deep drawing is another forming process used for shaping aluminium. In deep drawing, a blank (a flat piece of aluminium) is placed over a die and then drawn into the die cavity using a punch. The aluminium blank deforms and takes on the shape of the die, creating a seamless and hollow component.
Top 10 Basics for Aluminum Stretch Forming Process
Here’s an overview of the aluminum stretch forming process:
Material Selection
Begin by selecting the appropriate aluminum alloy based on the intended properties of the end product. Different alloys offer varying strengths, ductilities, and other qualities that impact their stretchability.
Annealing
Certain aluminum alloys might require annealing prior to stretching. Annealing involves heating the material to a specific temperature and gradually cooling it to improve its malleability. This process reduces strain hardening and increases the material’s ability to be stretched.
Stretching Equipment

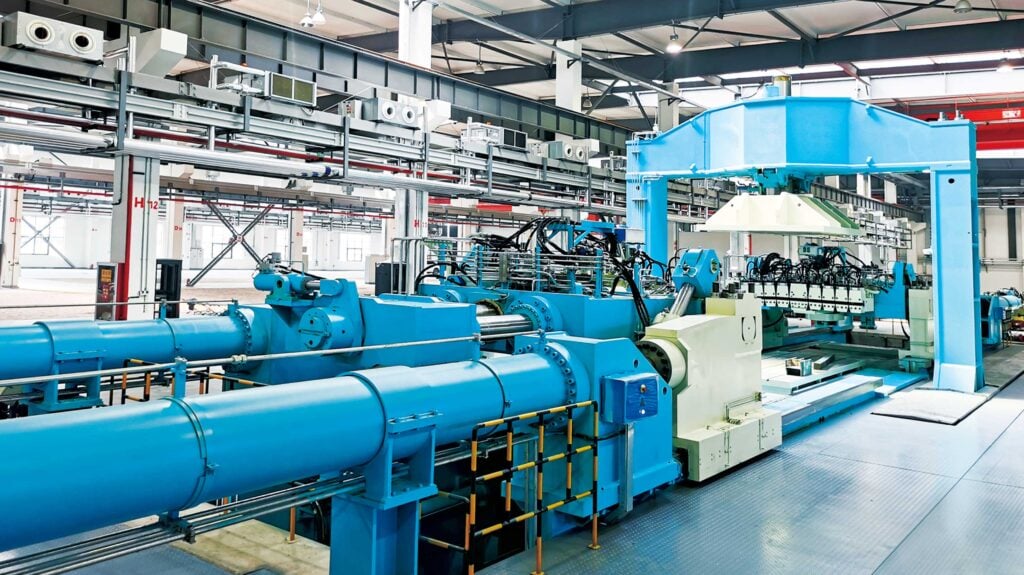

Specialized equipment like stretch forming machines are used to perform aluminum stretch forming. These machines apply controlled force to the aluminum, elongating it while maintaining consistent thickness.
Preparation
Prepare the aluminum by cutting it into the desired shape and size. Load the prepared material onto the stretch forming machine.
Application of Force
During stretch forming, tension forces are applied to the aluminum, causing it to elongate. The magnitude of the applied force and the rate of stretch forming are meticulously controlled to achieve precise dimensions and desired properties.
Directional Control
Stretching can be performed in various directions, such as longitudinal stretch forming (along the rolling direction) or transverse stretch forming (perpendicular to the rolling direction). The chosen direction impacts the resulting microstructure and properties of the material.
Stretch forming Rate and Temperature
Stretch forming rate and temperature significantly influence the final properties of the stretched aluminum. Slower stretch forming rates and elevated temperatures enhance formability and minimize springback tendencies.
Cooling and Annealing (Optional)
Post-stretch forming, the aluminum may undergo cooling or even annealing to stabilize its microstructure and relieve internal stresses generated during the stretch forming process.
Quality Control
Thoroughly inspect the stretched aluminum for dimensional accuracy, surface quality, and mechanical properties. These assessments ensure that the material adheres to the specified requirements.
Further Processing
Stretched aluminum can undergo additional processes such as cutting, shaping, machining, or surface treatment to achieve the final desired product.
Factors Affecting Aluminium’s Formability
The formability of aluminium is influenced by several factors, including:
- Alloy Composition (H4): Different aluminium alloys exhibit varying levels of formability. Some alloys are specifically designed for improved formability, while others are better suited for structural applications. Alloys with higher magnesium and manganese content generally offer better formability.
- Temper (H4): The temper of aluminium refers to its mechanical properties achieved through heat treatment. Aluminium can be supplied in various tempers, ranging from fully annealed (soft) to fully hard. Soft tempers generally exhibit better formability, while harder tempers may be more suitable for structural applications.
- Sheet Thickness (H4): Thicker aluminium sheets may be less formable than thinner sheets. Thicker sheets require higher forming forces, which can lead to more significant springback (the tendency of the material to return to its original shape after forming).
- Lubrication (H4): Proper lubrication during forming processes is essential to reduce friction and prevent galling, which can improve the formability of aluminium.
Four Applications of Stretched Aluminium
Stretched aluminium finds numerous applications across industries due to its formability and desirable properties:
- Aerospace: In the aerospace industry, stretched aluminium is used to create complex and aerodynamic components for aircraft and spacecraft.
- Automotive: Automotive manufacturers use stretched aluminium to produce lightweight and fuel-efficient components, such as body panels and structural parts.
- Construction: In the construction industry, stretched aluminium is utilized for architectural components, roofing, and cladding due to its corrosion resistance and formability.
- Consumer Goods: Stretched aluminium is found in various consumer goods, including household appliances, electronic devices, and recreational equipment.
Conclusion
In conclusion, aluminum is indeed a stretchable and highly formable material. Its ability to be stretched and shaped through processes like stretch forming and deep drawing makes it a valuable choice for a wide range of applications in different industries. The formability of aluminium is influenced by factors such as alloy composition, temper, sheet thickness, and lubrication. By understanding these factors and employing appropriate forming techniques, manufacturers can harness the full potential of aluminium and create intricate and durable components for diverse applications. As technology and material science continue to advance, aluminium’s formability is likely to be further optimized, opening up new possibilities for innovative and sustainable designs in the future.
