Mastering Pipeline Cold Bending Calculation: A Comprehensive Guide

Pipeline cold bending is a technique used to curve pipes without the need for heat or specialized equipment. This method is widely employed in various industries, including oil and gas, construction, and infrastructure development. The accurate calculation of bending parameters is essential for achieving precise and safe results.

Profile bending machine 3D roll bending tubing profiles

Understanding Bending Parameters

Before delving into the calculation, it is crucial to understand the key bending parameters involved in pipeline cold bending. These parameters include:

  • Bend Radius (R): The radius of the desired curve in the pipe. It determines the extent of the bend and impacts the structural integrity of the pipeline.
  • Bend Angle (θ): The angle through which the pipe is bent. It determines the degree of curvature required for the specific application.
  • Chord Length (C): The length of the straight line connecting the endpoints of the bent section of the pipe. It affects the overall length and positioning of the pipe in the system.

Calculation Methodologies and Formulas

Pipeline cold bending calculations involve complex formulas and methodologies to determine the optimal bending parameters. Two widely used approaches are the empirical method and the analytical method.

  • Empirical Method: This method relies on established empirical formulas derived from practical experience. One commonly used formula is the “Rule of Thumb” formula, which estimates the required bend radius based on the pipe diameter and wall thickness. Another empirical approach involves consulting industry-specific standards or guidelines for recommended bending parameters.
  • Analytical Method: The analytical method involves more precise calculations based on mathematical models. It takes into account various factors such as pipe properties, material behavior, and stress analysis. Finite Element Analysis (FEA) software can be employed to simulate the bending process and evaluate stress distribution, enabling more accurate calculations.

Top 4 Key Formulas for Pipeline Cold Bending Calculation

  • Rule of Thumb Formula: Estimates bend radius based on pipe diameter and wall thickness.
  • Pipe Stress Calculation: Determines the maximum allowable stress in the pipe during bending.
  • Deflection Calculation: Evaluates the expected deflection of the pipe under bending forces.
  • Springback Calculation: Estimates the amount of springback, or elastic recovery, after the bending process.

Considerations and Safety Factors

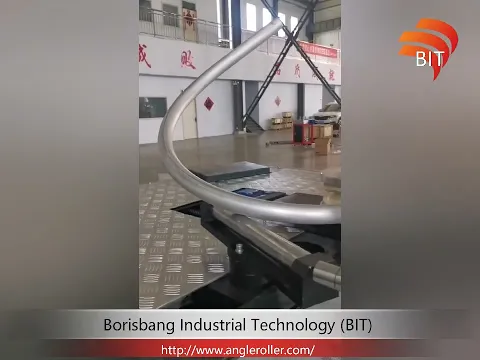

3d freeform tube bender
3D Freeform Tube Bender

Several considerations and safety factors should be taken into account during pipeline cold bending calculations to ensure safe and reliable results:

  • Material Properties: The mechanical properties of the pipe material, such as yield strength, elasticity, and ductility, impact the bending process and must be considered in calculations.
  • Safety Factors: Applying appropriate safety factors helps account for uncertainties and variations in material properties, bending conditions, and other factors. These factors ensure the integrity and longevity of the bent pipe.
  • Code and Standard Compliance: It is essential to comply with relevant industry codes, standards, and regulations governing pipeline bending. These guidelines provide critical safety measures and best practices.

Safety Factors for Pipeline Cold Bending

Material Strength FactorAccounts for variations in material properties.
Bending Force FactorConsiders variations in bending forces and conditions.
Safety Margin FactorProvides an additional buffer for unpredictable factors.


Pipeline cold bending calculation is a critical step in achieving accurate and safe bending results. Understanding the bending parameters, utilizing appropriate calculation methodologies, and considering safety factors are vital for success. By applying precise calculations and adhering to industry standards, engineers and professionals can ensure the reliability and integrity of bent pipelines, supporting various industries and infrastructure projects worldwide.
